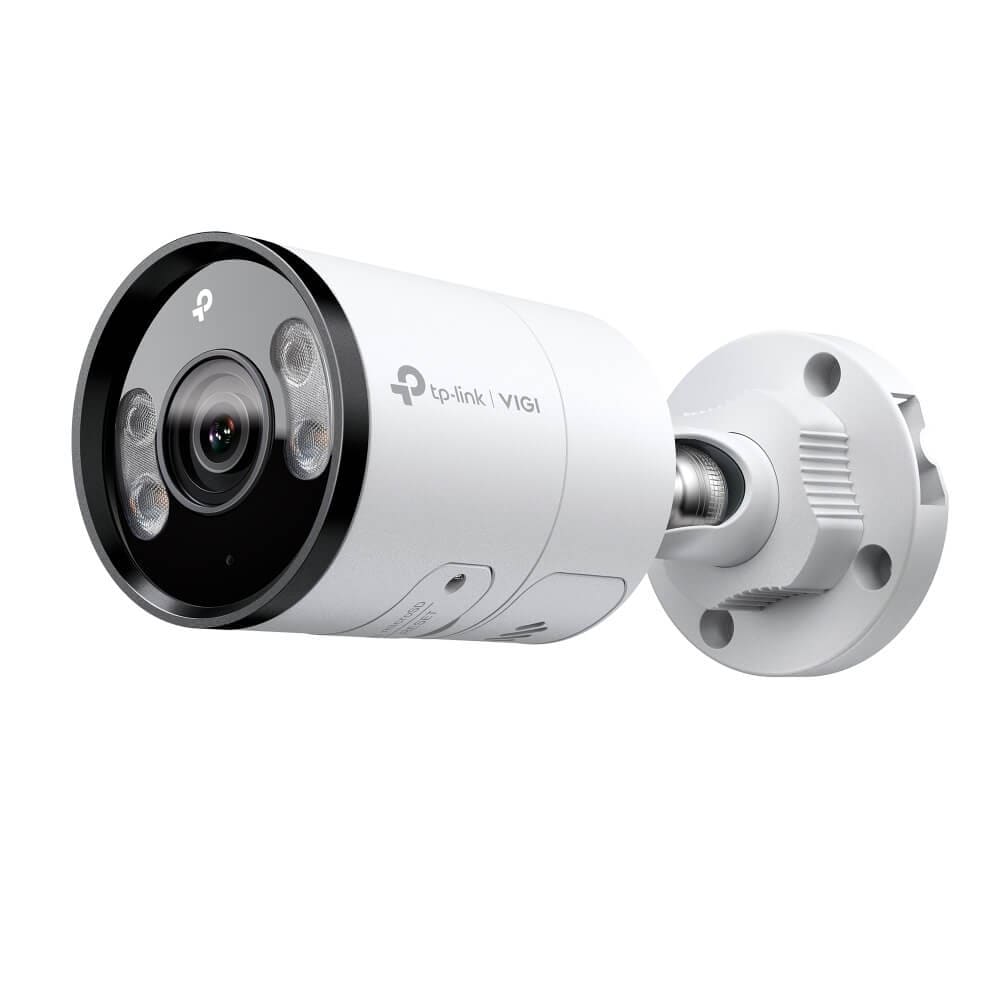

TP-Link - Caméra IP PRO IA INSIGHT-S385 (2.8mm) - INSIGHT S385(2.8MM)

CaméraCapteur d'image1/2.7” Progressive Scan CMOSVitesse d'obturation1/3 to 1/10000 sObturateur lentYesÉclairage minimal0.005 Lux; 0 Lux with IR/White lightSystème Jour/NuitIR Cut FilterBascule jour/nuitUnified/ Scheduled/ Auto

LENTILLESTypeFixed Focal LensDistance focale2.8/4 mmOuvertureF1.6FOV• 2.8 mm:
Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°Monture de lentillesM12*P 0.5DORI Distance• 2.8 mm
Detect: 85 m (278 ft)
Observe: 35 m (116 ft)
Recognize: 17 m (56 ft)
Identify: 8 m (28 ft)

Angle Adjustment (Manual)PortéePan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

ILLUMINATORLED IR• Quantity: 2
• Range: 30m
• Wavelength: 850nmLED Blanche• Quantity: 2
• Range: 30mIlluminator On/Off ControlAuto/Scheduled/Always on/Always off

VIDEORésolution Max.3840 X 2160Flux principal• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080,
1280x720

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.Sub-Stream• Frame Rate：
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

• Resolution:
704x576,640x480, 352x288, 320x240

• Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If 120dB is turned on, the frame rate can only support up to 20fps.Bit Rate ControlCBR, VBRCompression Vidéo• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264Type H.264High ProfileH.264+Main Stream SupportedType H.265Main ProfileH.265+Main Stream SupportedBitrate vidéo• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

ImageParamètres Images• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client SoftwareAmélioration d'imagesBLC/3D DNR/HLC/SmartIRLarge plage dynamique120 dBSNR≥ 52 dBCommutateur de paramètres d'imageYesMasque de confidentialitéUp to 4 MasksROI1 RegionOSD SettingYes

AUDIOCommunication audioTwo-Way AudioEntrée audioYesSortie audioYesCompression audioYesAudio Sampling Rate8KHzFiltrage du bruit de l'environnementYesAudio Bit Rate64 Kbps(G.711 alaw)

RESEAUProtocoleTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARPONVIFYesAPIONVIF (Profile S/T/G)Affichage en direct simultané3 Main Streams & 3 Sub-StreamsClientVIGI App, VIGI Security Manager, Web UI, VIGI VMS，VIGI Cloud VMSNavigateur Web• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and aboveCloudYesSécuritéPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Administration Alarme et EvénementEvénement Intelligent• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• Loitering Detection
• People Detection
• Vehicle Detection
• Abnormal Sound Detection
• Scene Change DetectionÉvénement de base• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)
• Video Tampering Detection
• Exception ( Illegal Login)Alarm Linkage• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light FlashingLinkage MethodN/AOutput NotificationMessage Push

Deep Learning FunctionPeople & Vehicle AnalyticsSearch and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§

INTERFACESInterface réseau1 RJ45 10/100M Self-Adaptive Ethernet Port, PoEAlarmeN/ABouton ResetYesAlimentationDC Power PortStockage embarquéBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB**Microphone IntégréYes; Records Anything Going on within a 15-ft Radius of the CameraEnceinte IntégréeYesAudioN/A

GénéralTempérature de fonctionnement-30–60 °CStorage Temperature-40–60 °CHumidité de fonctionnement95% or Less (Non-Condensing)Humidité de stockage95% or Less (Non-Condensing)Contenu de la boite• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting AccessoriesMatérielMetalPoids Net0.525 KgAlimentation• 12V DC ± 5%, Max. 10.5 W, 5.5 mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 11.5 WProtectionIP67Product Dimensions (L x W x H)184 × 74 × 74 mmCertificationsCE, NTRA, VCCI, KC, BSMI, FCC, IC
