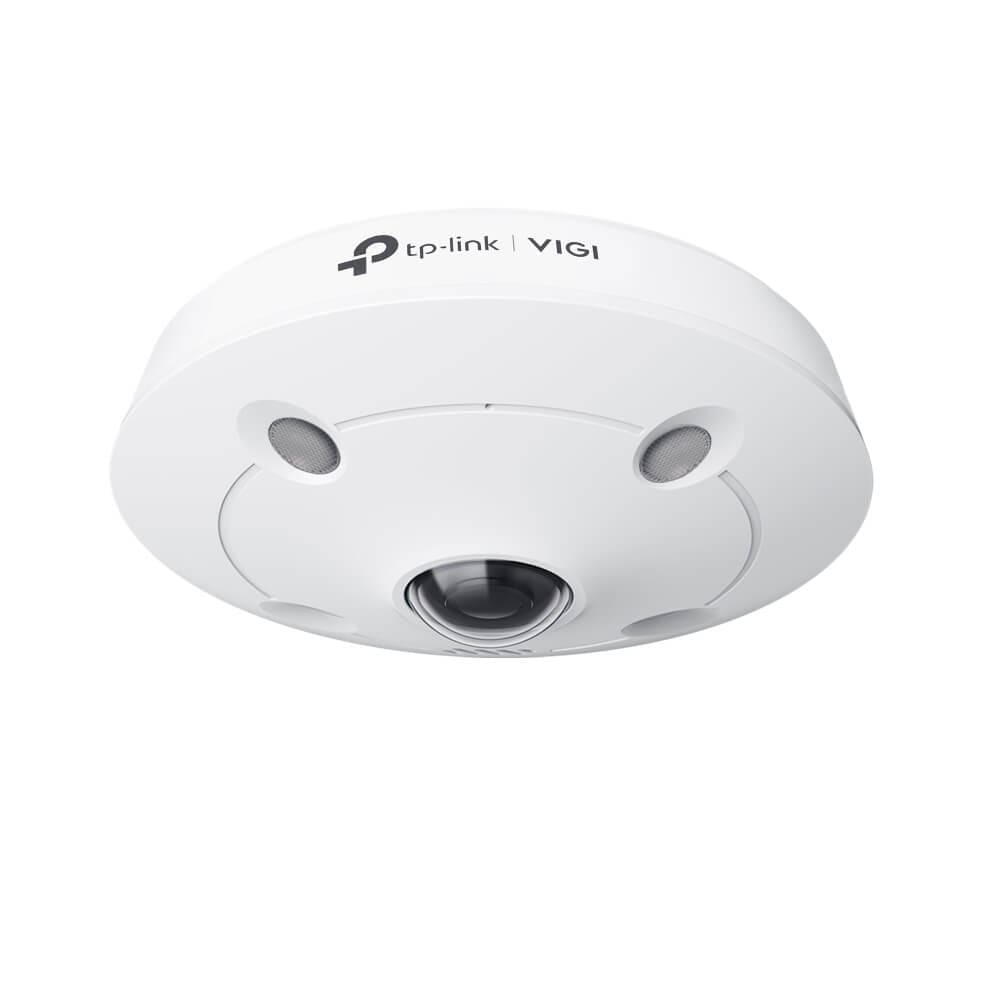

TP-Link - Caméra IP PRO IA INSIGHT-S655I - INSIGHT S655I

CaméraCapteur d'image1/2.7” Progressive Scan CMOSVitesse d'obturation1/3 to 1/10000 sObturateur lentYesÉclairage minimalColor: 0.01 Lux; 0 Lux with IR lightSystème Jour/NuitIR Cut FilterBascule jour/nuitUnified/ Scheduled/ Auto

LENTILLESTypeFisheye LensDistance focale1.44 mmOuvertureF2.0FOVHorizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180°Monture de lentillesM12*P0.5DORI DistanceDetect: 28.8 m (94 ft)
Observe:12 m (39 ft)
Recognize: 5.7 m (19 ft)
Identify: 2.8 m (9 ft)

Angle Adjustment (Manual)PortéeN/A

ILLUMINATORLED IR• Quantity: 4
• Range: 30m
• Wavelength: 850nmLED BlancheN/AIlluminator On/Off ControlAuto/Scheduled/Always on/Always off

VIDEORésolution Max.2560 × 1920Flux principal• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960

Note:
If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If WDR is on, the frame rate only supports up to 15fps.Sub-Stream• Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps

• Resolution:
640 × 480, 320 × 240

Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
If WDR is on, the frame rate only supports up to 15fps.Bit Rate ControlCBR, VBRCompression Vidéo• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264Type H.264High ProfileH.264+Main Stream SupportedType H.265Main Profile*H.265+Main Stream SupportedBitrate vidéo• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

ImageParamètres Images• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure
• WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client SoftwareAmélioration d'imagesBLC/3D DNR/HLC/SmartIRLarge plage dynamique120dBSNR≥ 52 dBCommutateur de paramètres d'imageYesMasque de confidentialitéUp to 4 MasksROI1 RegionOSD SettingYes

AUDIOCommunication audioTwo-Way AudioEntrée audioYesSortie audioYesCompression audioYesAudio Sampling Rate8KHzFiltrage du bruit de l'environnementYesAudio Bit Rate64 Kbps(G.711 alaw)

RESEAUProtocoleTCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTPONVIFYesAPIOpen Network Video Interface (Profile S/T/G)Affichage en direct simultané3 Main Streams & 3 Sub-StreamsClientUtility, VIGI App, Web UI, VIGI VMSNavigateur Web• Google Chrome® 57 and above
• Firefox® 52 and above
• Safari® 11 and above
• Microsoft® Edge 91 and aboveCloudYesSécuritéPassword Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

Administration Alarme et EvénementEvénement Intelligent• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Abnormal Sound DetectionÉvénement de base• Motion Detection
• Video Tampering Detection
• Exception ( Illegal Login)Alarm Linkage• Memory Card Video Recording
• Message Push
• Audible WarningLinkage MethodN/AOutput Notification• Message Push
• Email Alarm
• Upload Capture to FTP

INTERFACESInterface réseau1 RJ45 10/100M Self-Adaptive Ethernet Port, PoEAlarmeN/ABouton ResetYesAlimentationDC Power PortStockage embarquéBuilt-In Memory Card Slot, Support MicroSD Card, up to 512 GB**Microphone IntégréYes; Records Anything Going on within a 15-ft Radius of the CameraEnceinte IntégréeYesAudioN/A

GénéralTempérature de fonctionnement-30–60 °CStorage Temperature-40–60 °CHumidité de fonctionnement95% or Less (Non-Condensing)Humidité de stockage95% or Less (Non-Condensing)Contenu de la boite• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting AccessoriesMatérielMetalPoids Net0.27 KgAlimentation• 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug
• PoE: 802.3af/at, class 0, Max. 12.14WProtectionIP67 Weatherproof, IK10 Vandal ProofProduct Dimensions (L x W x H)132 × 132 × 56mmCertificationsCE, NTRA, VCCI, BSMI
