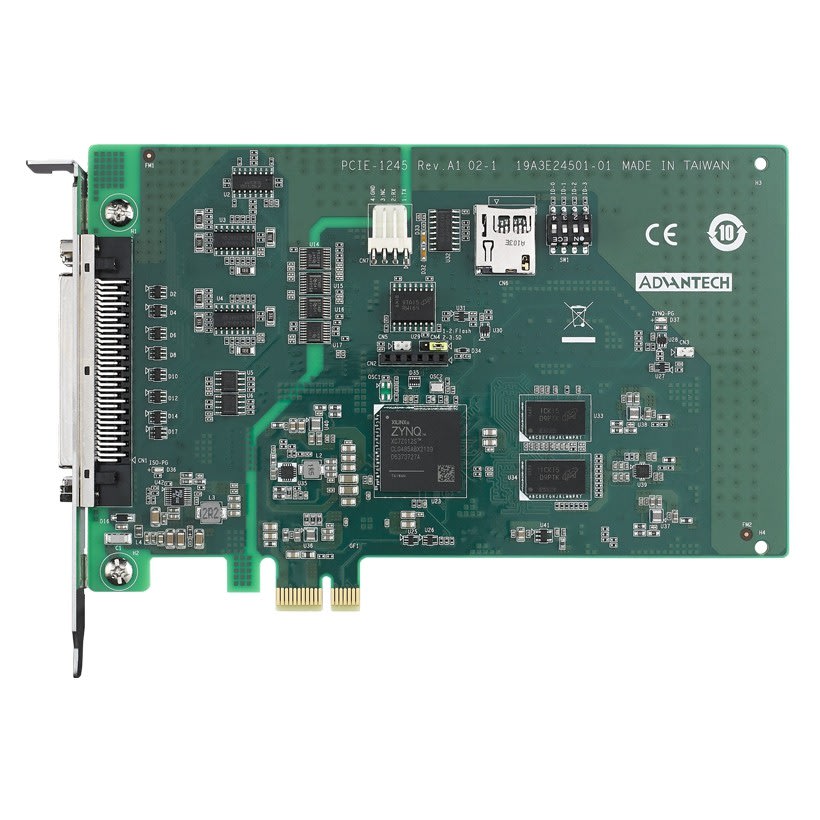

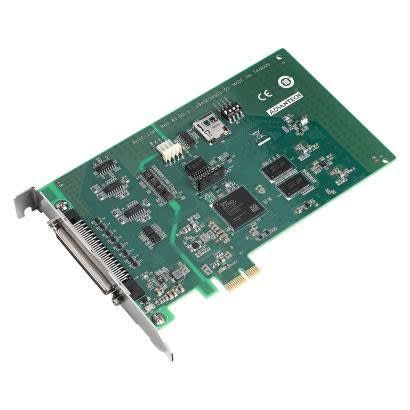

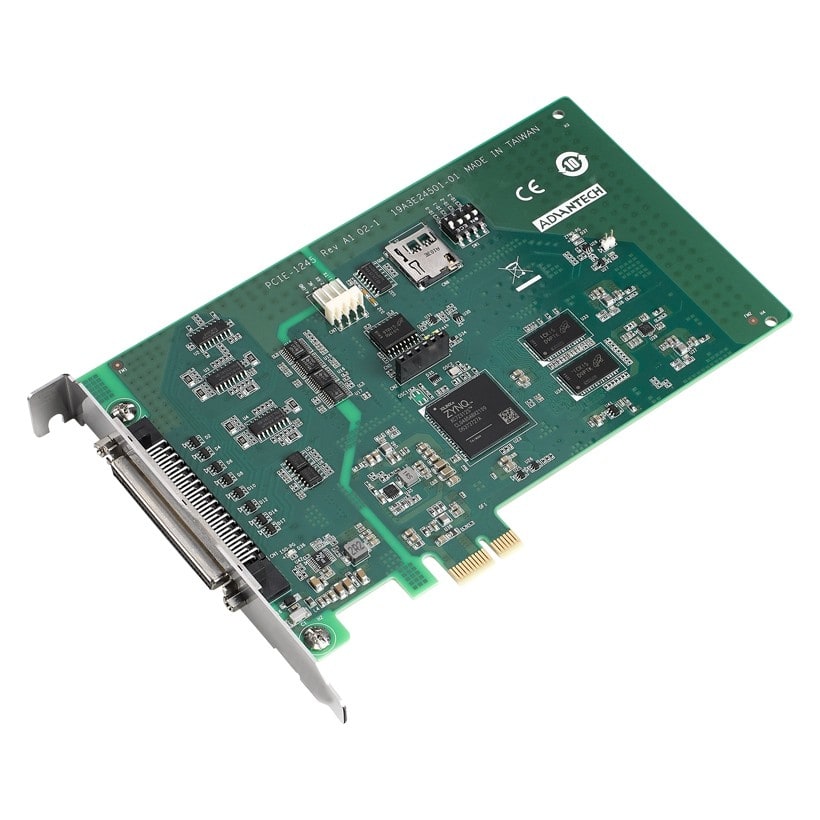

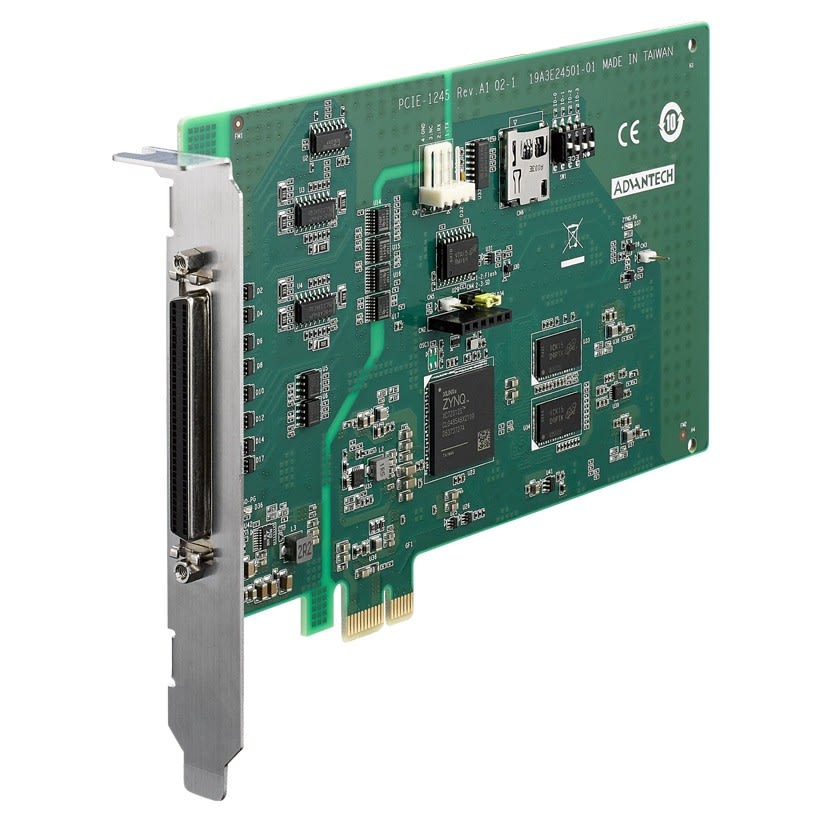

Advantech - Full 4-Axis Motion Control Universal PCI Express Card - PCIE-1245-AE
Connectez-vous pour accéder au prix et commander
Emballage et conditions
1 unité(s)
Produit non retournable
EAN
Réf. Sonepar
08085001287
Réf. Fournisseur
PCIE-1245-AE
Marque
Advantech
Encoder input: 5 MHz for CW/CCW,P/D,AB mode; Pulse output: up to 5 MHz Supports memory buffer (10 K points) for trajectory planning Supports point-to-point, line and E-Gear; Supports hardware emergency input Circular and helical
Les Atouts de l'article:
Encoder input: 5 MHz for CW/CCW,P/D,AB mode Pulse output: up to 5 MHzSupports memory buffer (10 K points) for trajectory planningSupports point-to-point, line and E-Gear Supports hardware emergency inputCircular and helical interpolation (PCIE-1245 only)Position latch up to 10KHz and memory buffer 1K points (PCIE-1245 only)Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points (PCIE-1245 only)1D&2D plane position compensation (PCIE-1245 only)Gantry mode by semi-closed loop pulse train control (PCIE-1245 only)Dynamic PWM output for velocity following (PCIE-1245 only)
Les Atouts de l'article:
Encoder input: 5 MHz for CW/CCW,P/D,AB mode Pulse output: up to 5 MHzSupports memory buffer (10 K points) for trajectory planningSupports point-to-point, line and E-Gear Supports hardware emergency inputCircular and helical interpolation (PCIE-1245 only)Position latch up to 10KHz and memory buffer 1K points (PCIE-1245 only)Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points (PCIE-1245 only)1D&2D plane position compensation (PCIE-1245 only)Gantry mode by semi-closed loop pulse train control (PCIE-1245 only)Dynamic PWM output for velocity following (PCIE-1245 only)
