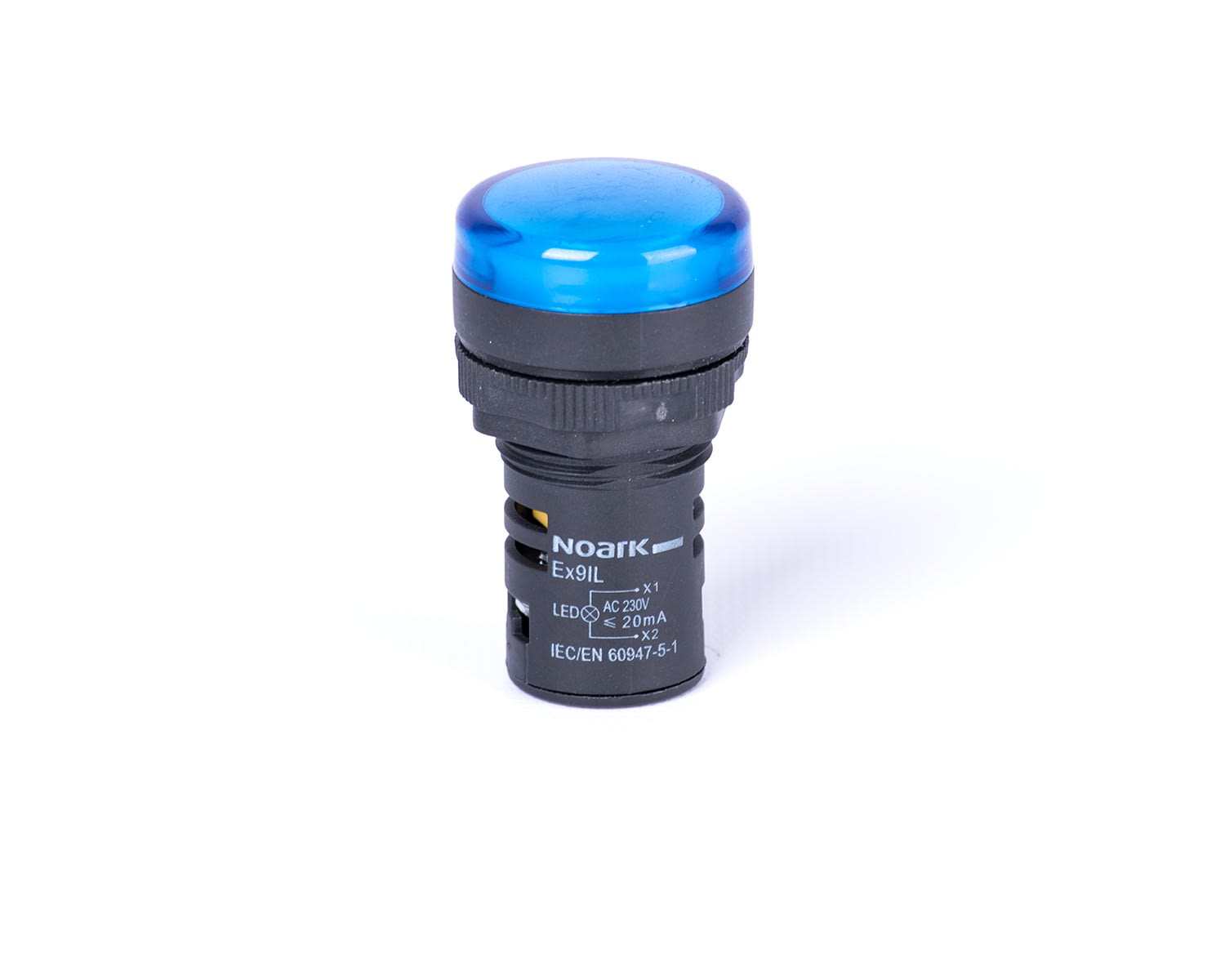

Madenr - Voyant en relief Ex9IL 36 V AC/DC bleu, connexion interne = résistance - 105472
Connectez-vous pour accéder au prix et commander
Spécificités essentielles
nombre de voyants lumineux - 1
couleur de la lentille - bleu
tension de fonctionnement nominale Ue - 36...36 V
type de tension - AC/DC
type de lentille - rond
Emballage et conditions
1 unité(s)
Produit non retournable
Série de produits
EAN
Réf. Sonepar
03054505473
Réf. Fournisseur
105472
Réf. Commerciale
Madenr
nombre de voyants lumineux:
1
couleur de la lentille:
bleu
tension de fonctionnement nominale Ue:
36...36 V
type de tension:
AC/DC
type de lentille:
rond
finition de la douille:
LED
source lumineuse fournie:
Oui
finition du raccordement électrique:
raccordement à vis
finition de la lentille:
plat
diamètre de trou:
22.3 mm
largeur de l'ouverture:
22.3 mm
hauteur de l'ouverture:
6 mm
avec bague frontale:
Non
indice de protection (IP):
IP65
Voyant en relief Ex9IL 36 V AC/DC bleu, connexion interne = résistance
Les Atouts de l'article:
Panel mounted signal lamps Ex9IL are used in various control desks, operator panels, machine control parts,security systems as well as in power distribution boards where it is necessary to show actual status or someevent occurring in the circuit. Device‘s height is 51 or 53 mm (depends on type) only. There are availableversions with white, green, red, yellow or blue head colour in two basic design variants. The first one with flatand the second with arc shaped head cover.Based on the requested application, there are offered two variants according to internal connection, resistanceand capacitance types. Used LED lights reduce current consumption, heat dissipation and extend servicelife.
